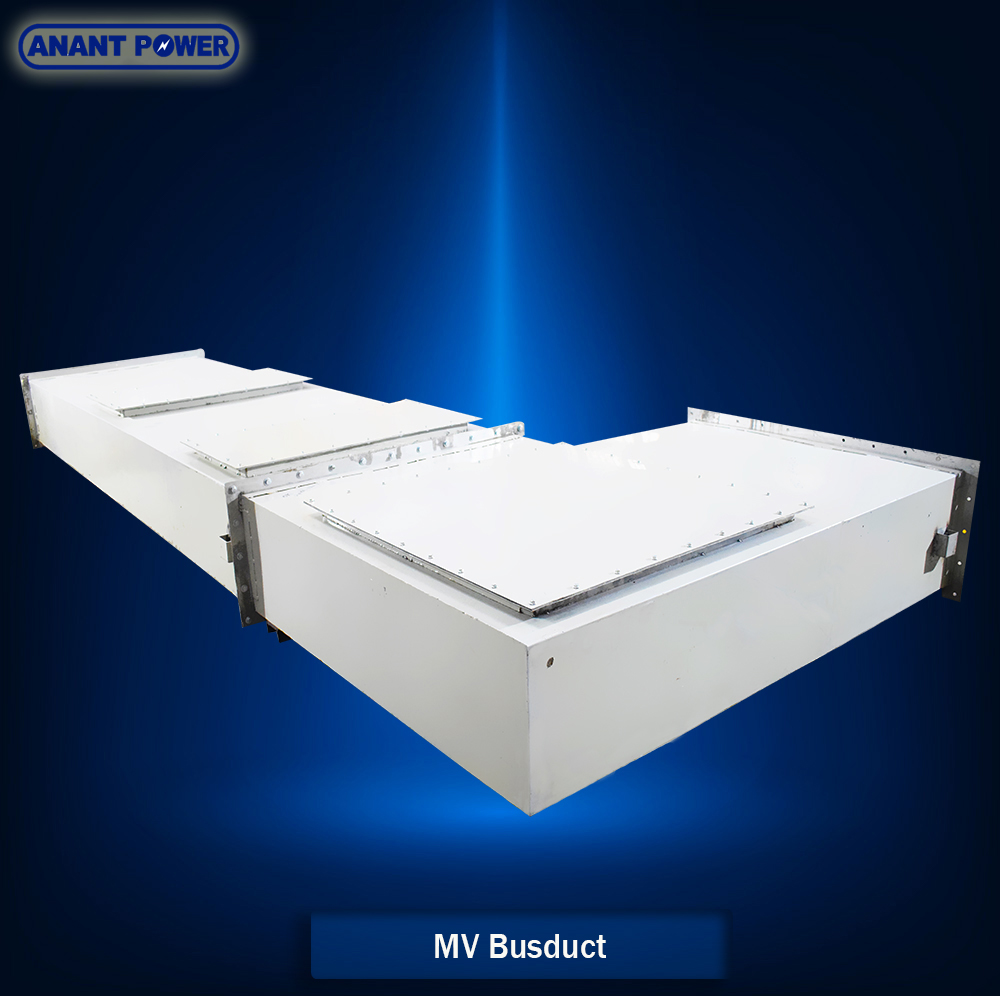

MV Busduct upto 22 KV

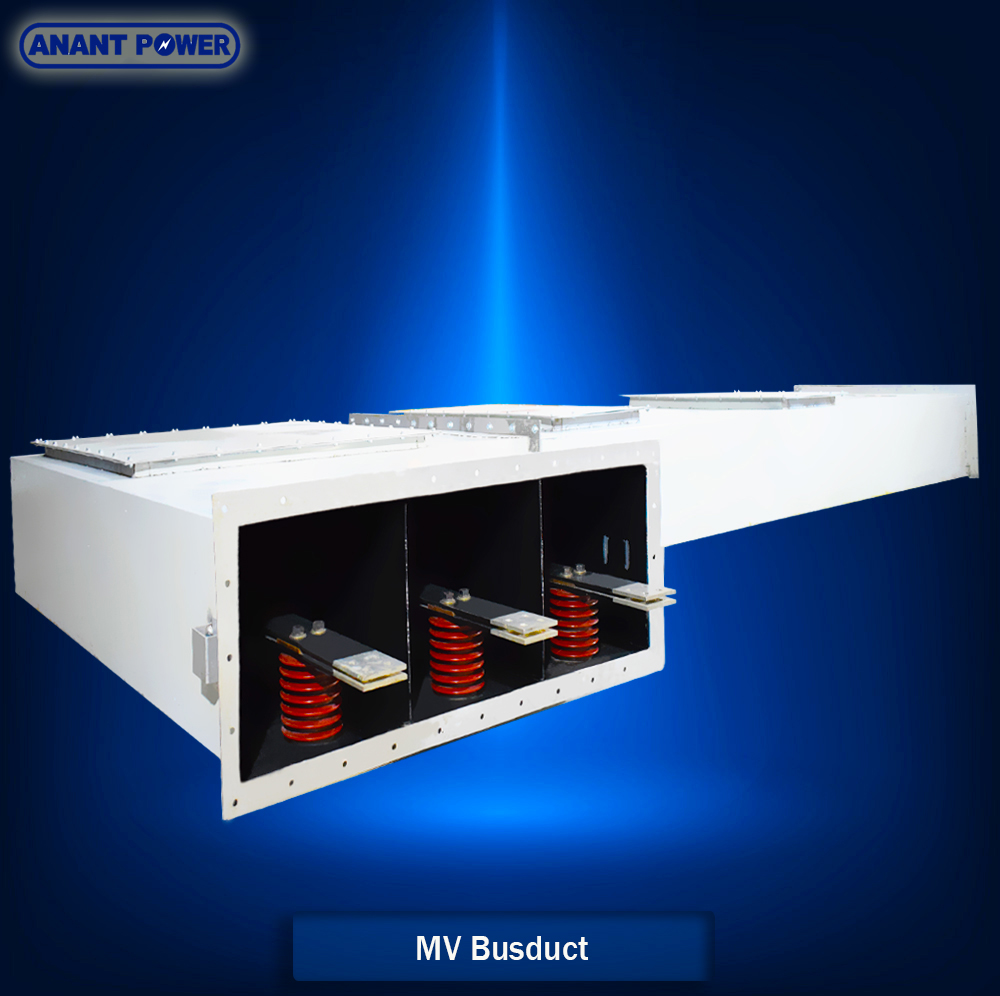

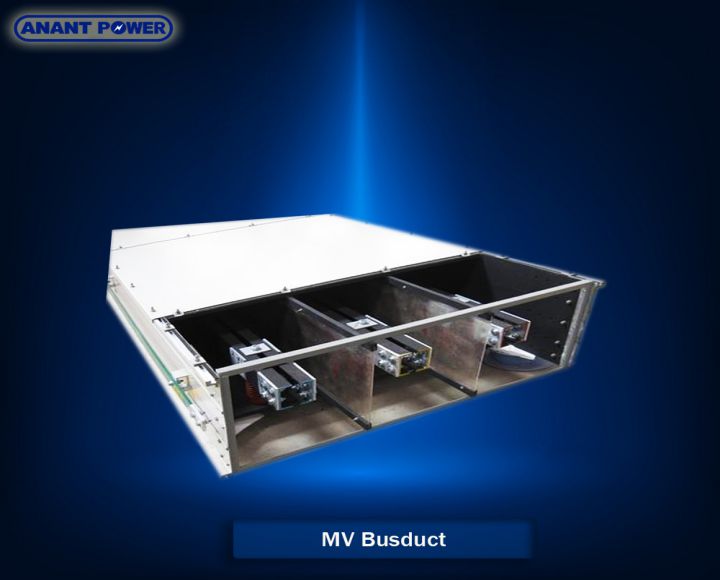

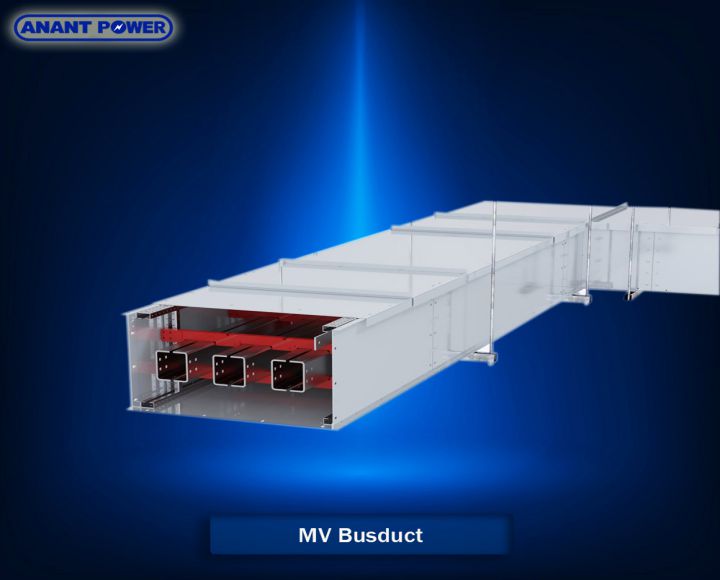

Segregated phase busduct has all phase conductors in a common enclosure with metal barriers between adjacent phases.
Segregated phase Busduct finds application in following Units & Utilities.
Transformer to Switchgears Panel.
Interconnection between Switchgears Panels.
Generator Phase terminals to Generator Circuit Breakers & Generator Circuit Breakers to Transformer.
Above Applications will find Power transfer solutions in following segments
Power generating stations (Captive Power Plants, Hydro & Solar)
Process plants, manufacturing industries & Industrial Buildings
Infrastructure establishment – Airports, Metros, Railways, Tunnels, Sea Ports.
Advance – Anant Power MV Busduct is designed to serve stringent weather conditions of India suitable for use in wide range temperature variations and to provide uninterrupted operations at following segments.
- Power Generating Stations, Sub-stations.
- Automotive & Manufacturing Industries, Process plants, Manufacturing Industries.
- Infrastructure establishment – Metros, Airports, Sea Ports, Railways.
- Cement Plants, Sugar Mills, Steel Plants
| Relevance Standard | IS 8084, IEC62271 |
| Rated Current | 630A to 5000A |
| Product Range | 3.3KV, 6.6KV, 11KV & 22 KV |
| Degree of Protection (IP) | IP55 / IP65 |
| Rated Short Time Withstand Current (Icw) | Up to 50kA for 3.0 Sec |
| Enclosure Material | Aluminum Alloy |
| Impulse Withstand Voltage | 40kVp to 125kVp (Uimp) |
| Surface Coating on Enclosure | Epoxy Polyester Powder Coated (RAL-7035) |
