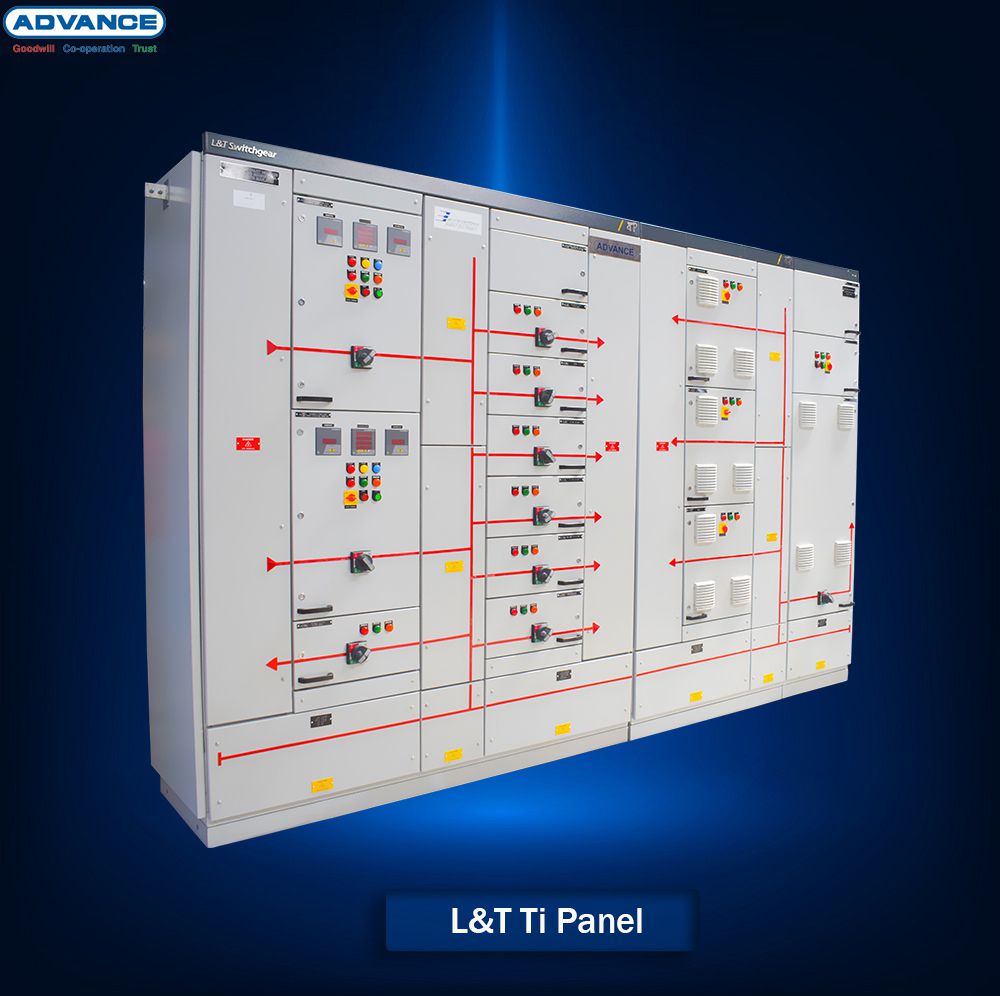

L&T Ti
Advance panels started in 1979 , with over Forty Years of valuable experience has partnered with L&T Electric the world's largest LV switchgears manufacturer to design and supply their latest range of High Voltage , Low Voltage switchgears manufacturer to design and supply their latest range of Low Voltage Switchboard L&T Ti to the Indian industry.
L&T Ti is a complete system integrating L&T Electric Switchgears component. All L&T Electric protective devices are designed and manufactured for optimum coordination and can be installed in a switchboard designed specifically for them.
Advance panels has the competence and facilities to provide these state of the art panels starting from design and development to prompt after sales support. We use the latest Computer aided design and engineering tools to arrive at an optimal solution to demanding and complex technical requirements. After these critical functions of engineering and designs the task of manufacturing falls to the special craftsmen of the in house work shop facilities.
It is this combination of engineering, manufacturing facilities and after sales support that provides customer delight to the equipment offered by us.
Operation Voltage | 380-690 V AC |
Rated Frequency | 50 / 60 Hz |
Insulation Voltage | 690 V |
Short time withstand | Up to 70 kA for 1 sec * |
Peak withstand | Up to 105 kA |
Rated Current (maximum) | Up to 5000A |
Conforming Standards | IS8623, IS13947, and IEC 61439 |
Form of Separation | Form 3B, Form 4A, Form 4B |

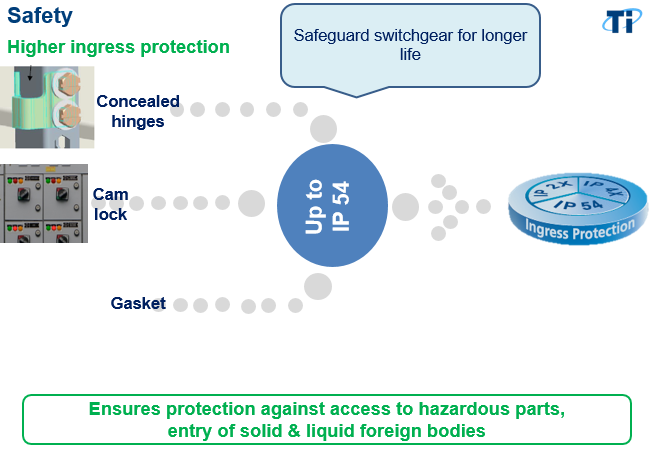

Degree of protection | Up to IP 54 |

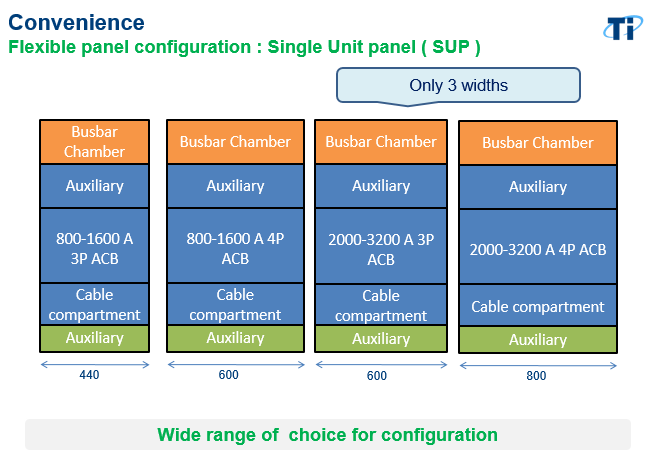

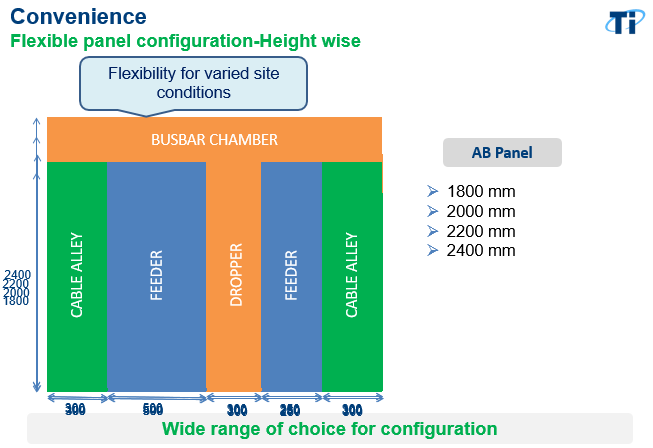

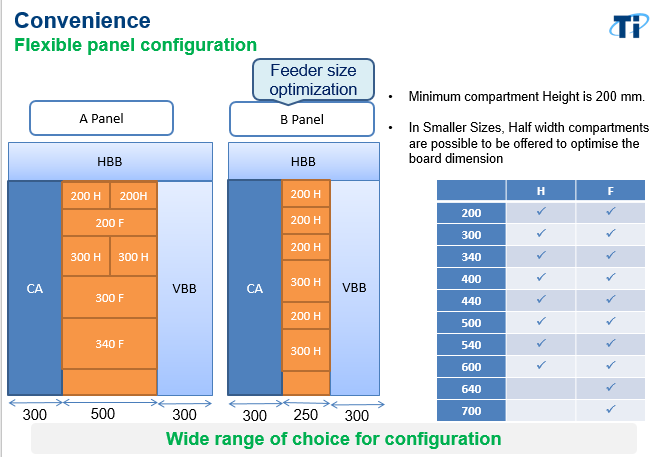

Panel types | SUP (for ACBs) - 440, 600,800,1000 (W) DB Panel type - A , AA, AB, B, BB |

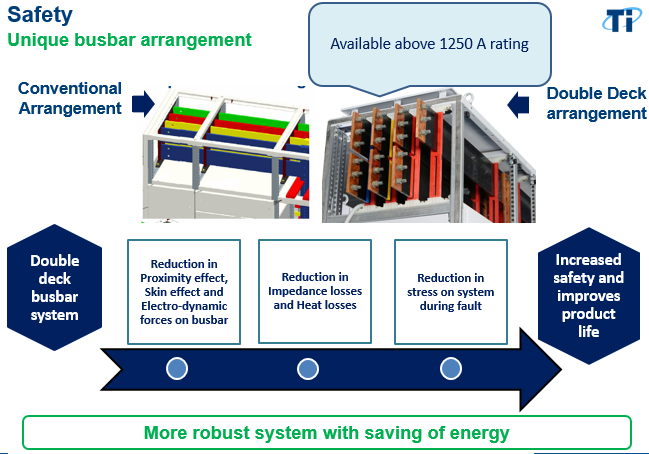

Horizontal Bus bar Material | Aluminum : Up to 5000A / Copper : 5000A |

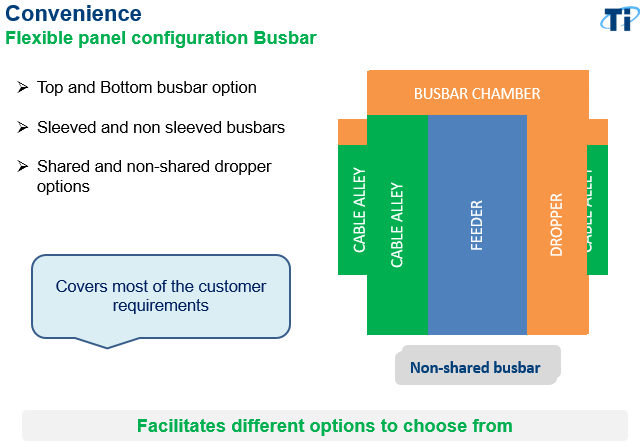

Horizontal Bus bar Location | Top / Bottom |
Cable Entry | SUP (for ACBs) - Top / Bottom DB Panel type - Top / Bottom |
