Compact Bustrunking

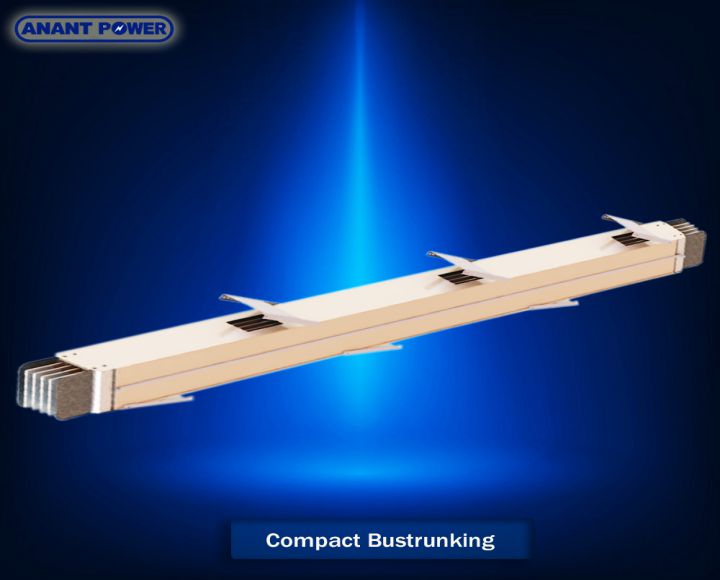

Compact Bustrunking System

Compact Bustrunking System is designed with minimum air gap between conductors as compared to conventional air insulated busduct so Compact Bustrunking System takes very little space in building/shaft.

Compact Bustrunking is space efficient, saves upto 50% of space in comparison with cable system and conventional Busduct.

With this design, we can provide maximum numbers of plug-in points at both sides of bustrunking hence Compact Bustrunking System can be suitable and useful for power distribution in various segments like industries, IT Sector, Hospitals, residential, hotels etc.

Compact Bustrunking System is designed to ensure very little maintenance. In case of malfunction it’s “easy to maintain”, design allows to replace the defected parts very easily without disturbance to adjacent one.

Advance – Anant Power Compact Bustrunking is designed to serve stringent weather conditions of India suitable for use in wide range temperature variations and to provide uninterrupted operations at following segments as Horizontal Distribution and Vertical Distribution or Rising Mains.

  1. Automotive & Manufacturing Industries, Process plants, Manufacturing Industries, Pharma Industries.
  2. Commercial buildings, Residential real estate, Educational Institutions & Hospitals
  3. Infrastructure establishment – Metros, Airports, Sea Ports, Railways.
  4. Malls, Shopping Centers, Exhibition Centers & Warehouses
  5. IT Parks, Data centers solutions, Offices.
  6. Garments Industries, Plywood Industries, Textile Industries
Relevance StandardIEC 61439 (1&6) & IS 8623 (1&2)
Product Range Copper 200-2000A, Aluminium 200-1250A
Rated Operating Condition(Ue)Up-to 1000 V, 50 Hz / 60 Hz
Rated Insulation Voltage (Ui)1000 V
Test Certification LabCPRI-India
Conductor MaterialCopper 99.9% pure and conductivity 97% IACS Min.
Aluminium 98.5% pure and conductivity 57% IACS Min.
Earthing Material (External Earth)Copper or Aluminium (Optional)
Rated Frequency50Hz / 60Hz

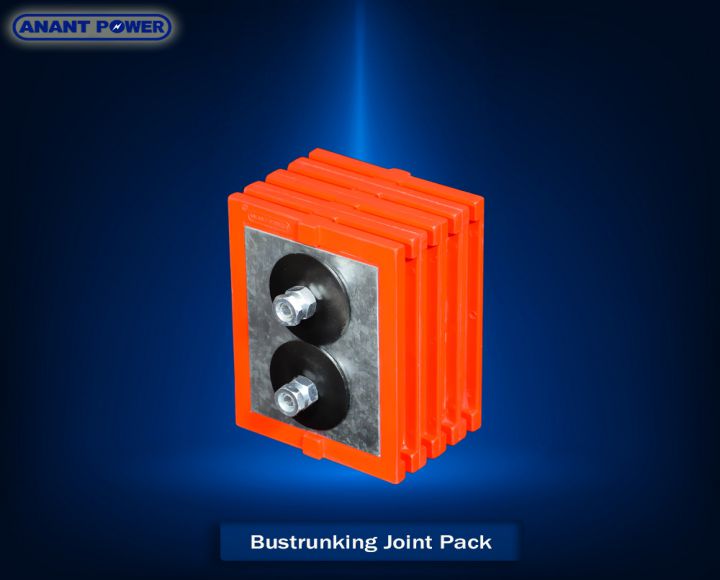

JointJoint Pack (With Isolation and Double Headed Nut)

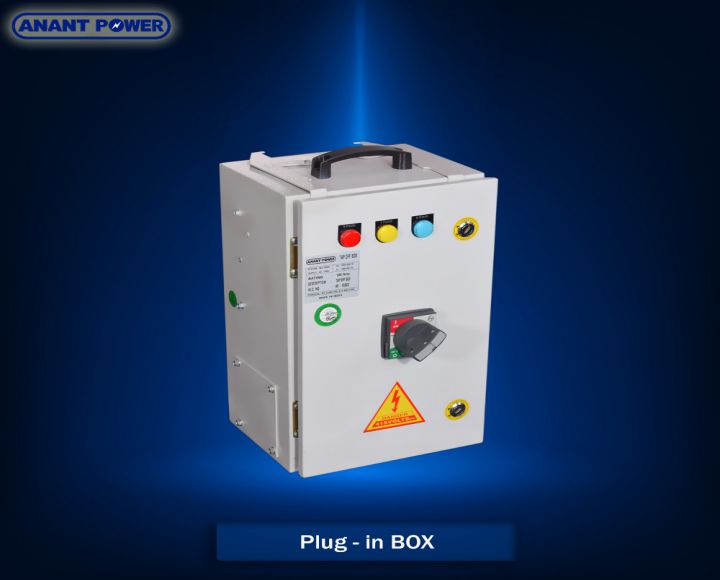

Plug-in box32~630A
Degree of Protection (IP)IP54
Surface Coating on EnclosureEpoxy Polyester Powder Coated (RAL-7035)
