Current Transformer

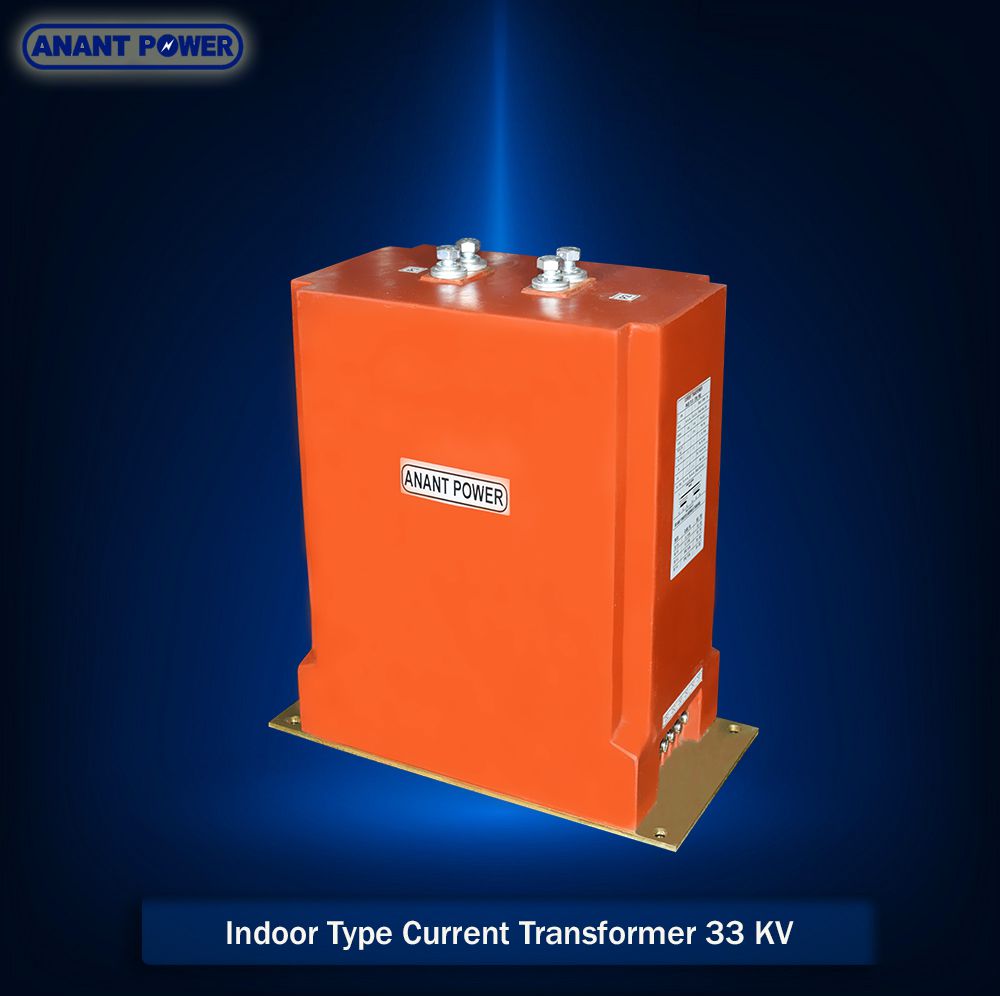

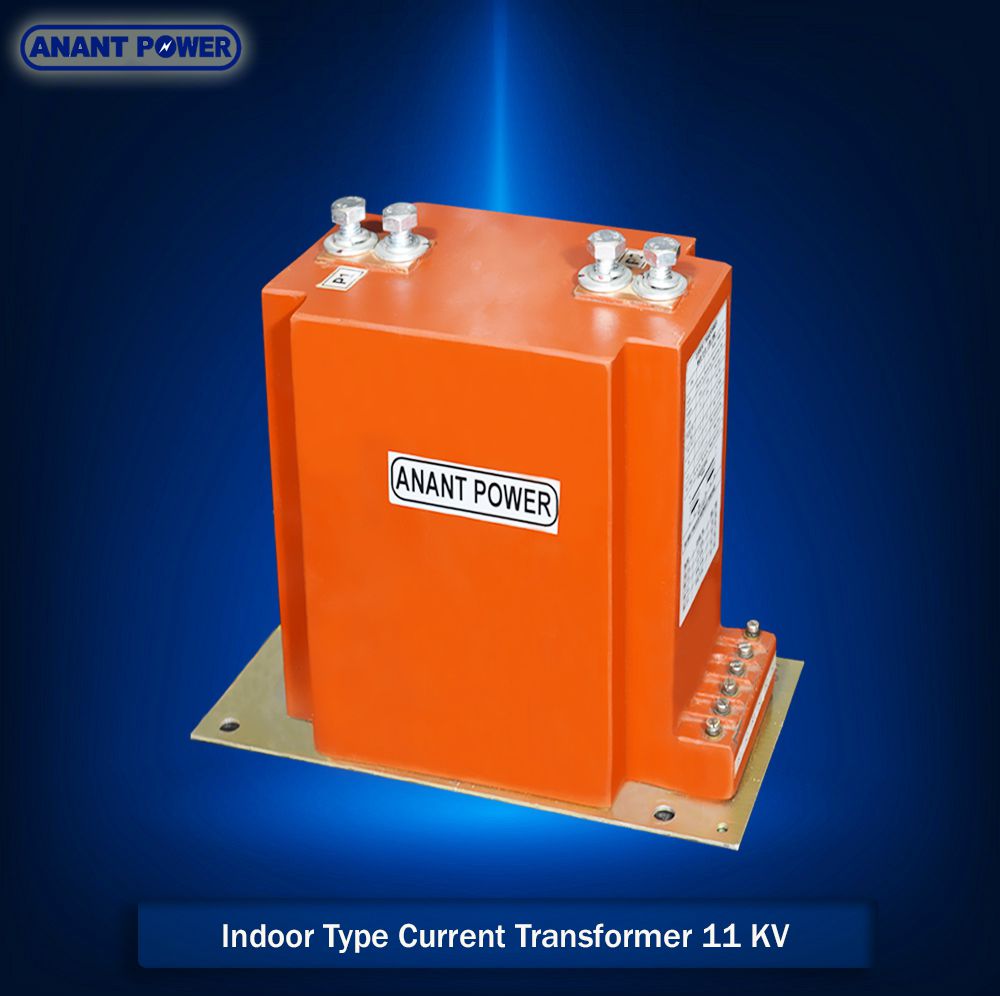

HT Current Transformer

The current transformer is used with the AC instrument, meters or control apparatus where the current to be measured is of such magnitude that the meter or instrument coil cannot conveniently be made of sufficient current carrying capacity.

ParametersParticulars
System Voltage6.6KV, 11KV & 33 KV
IpUp to 1200 A for Wound Primary Type and Up to 5000 A for Window Type
Is1 A or 5 A
IthUp to 50 kA
Insulation ClassB and Higher
Accuracy ClassMetering Classes 1.0, 0.5, 0.2, 0.2S, 0.5S Protection Classes 5P, 10P, Special Protection PS.
DimensionsAs per Customer requirements
StandardIS:2705/1992, IEC 61869
Frequency50 / 60 Hz

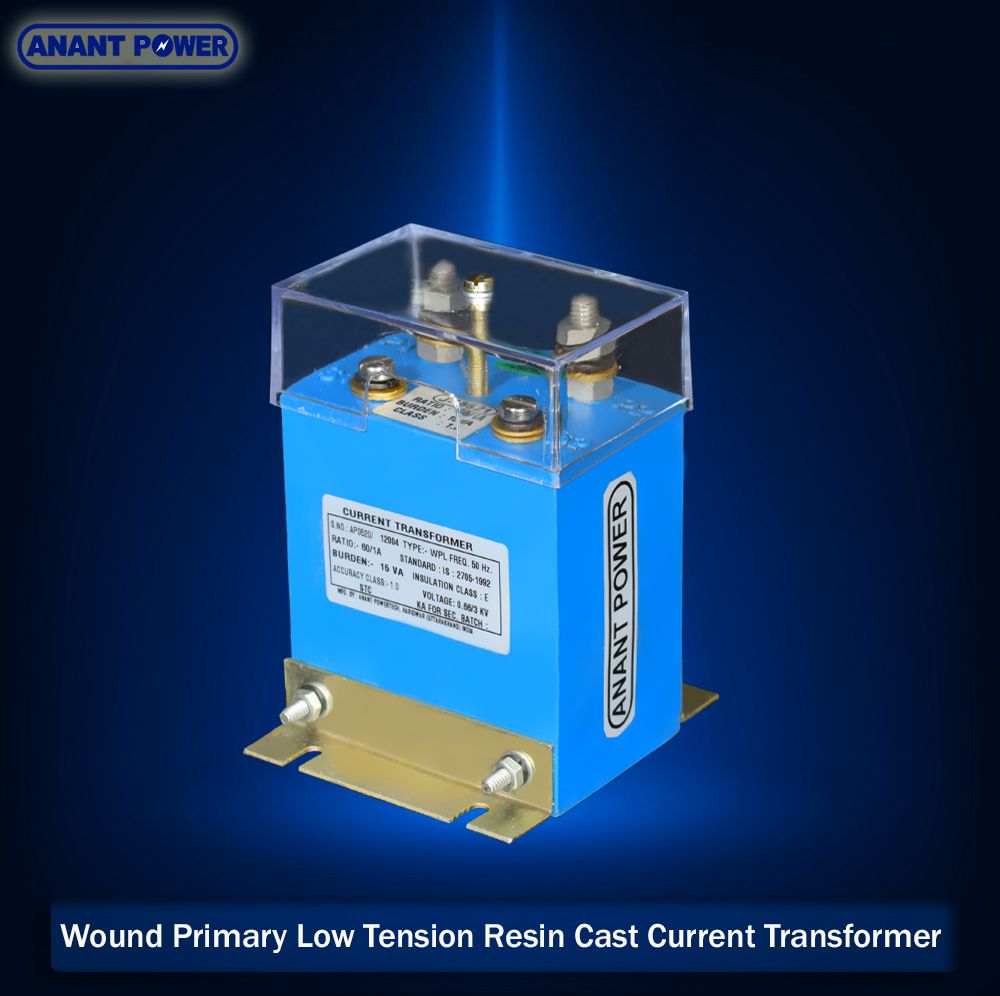

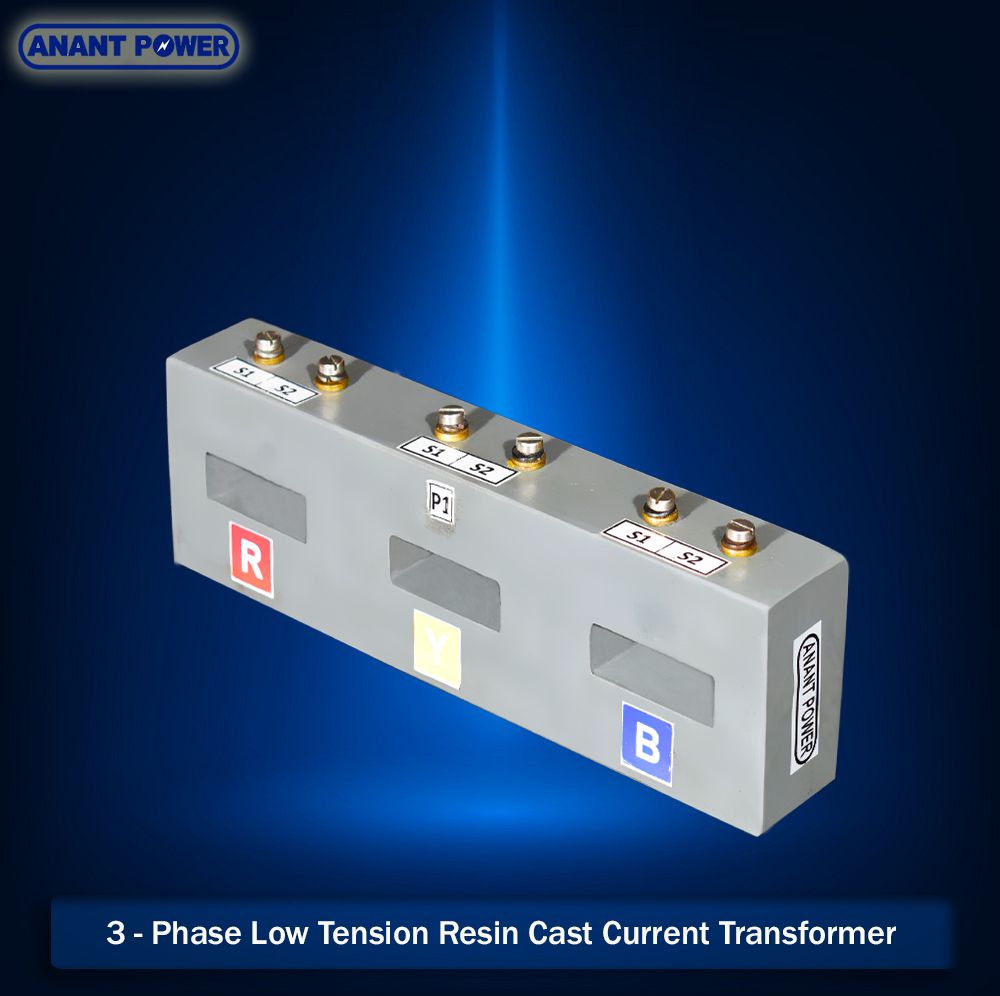

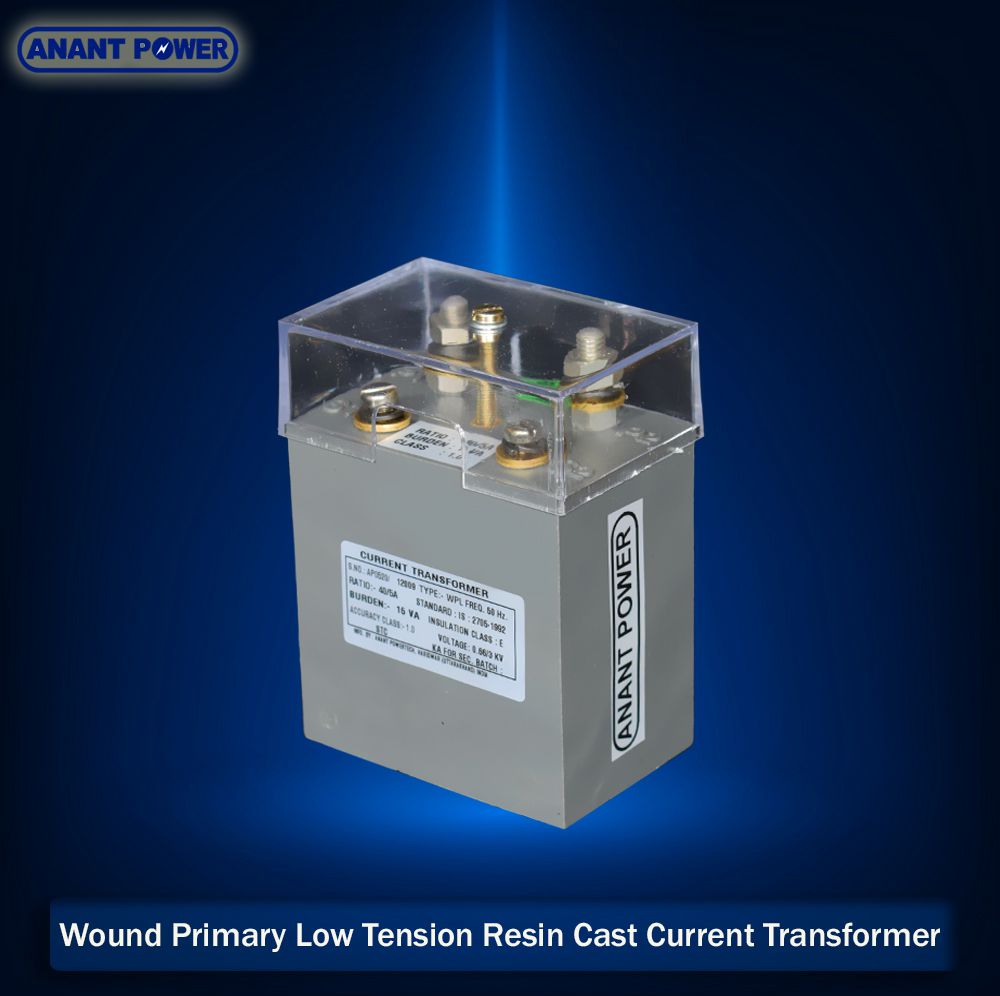

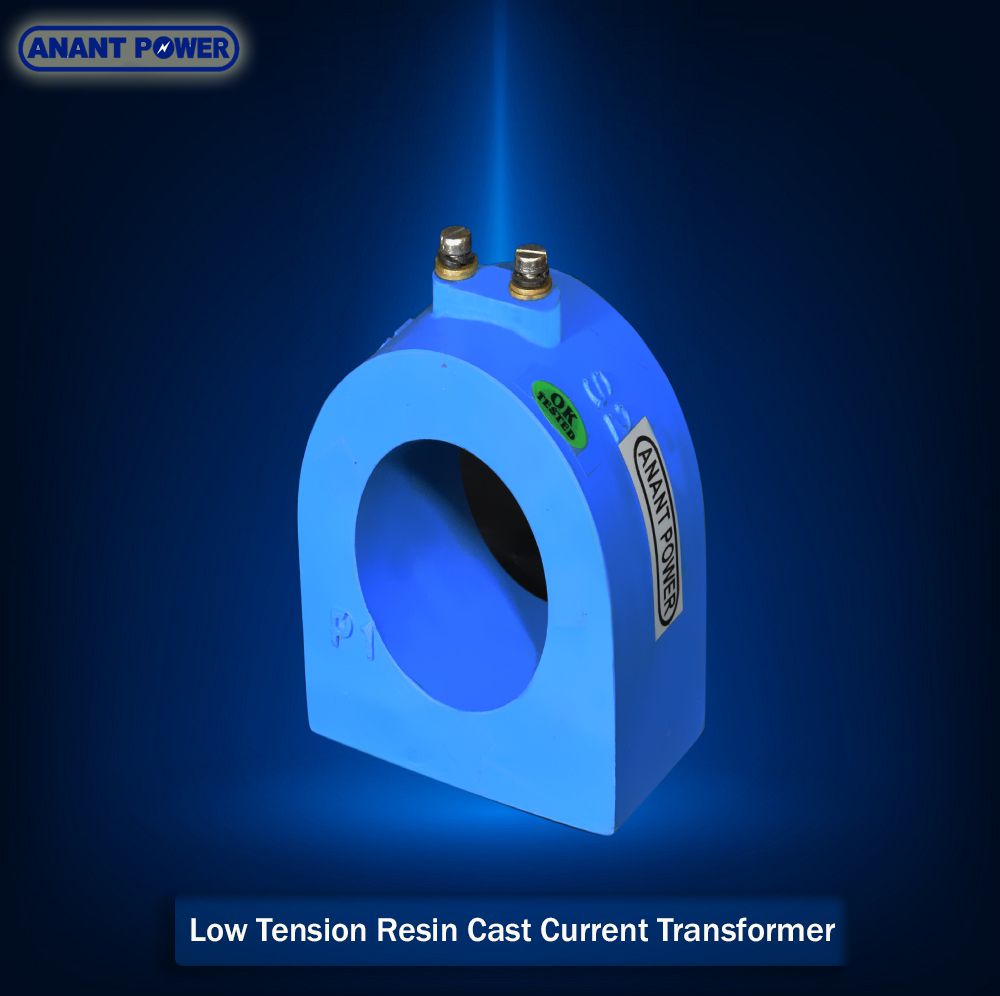

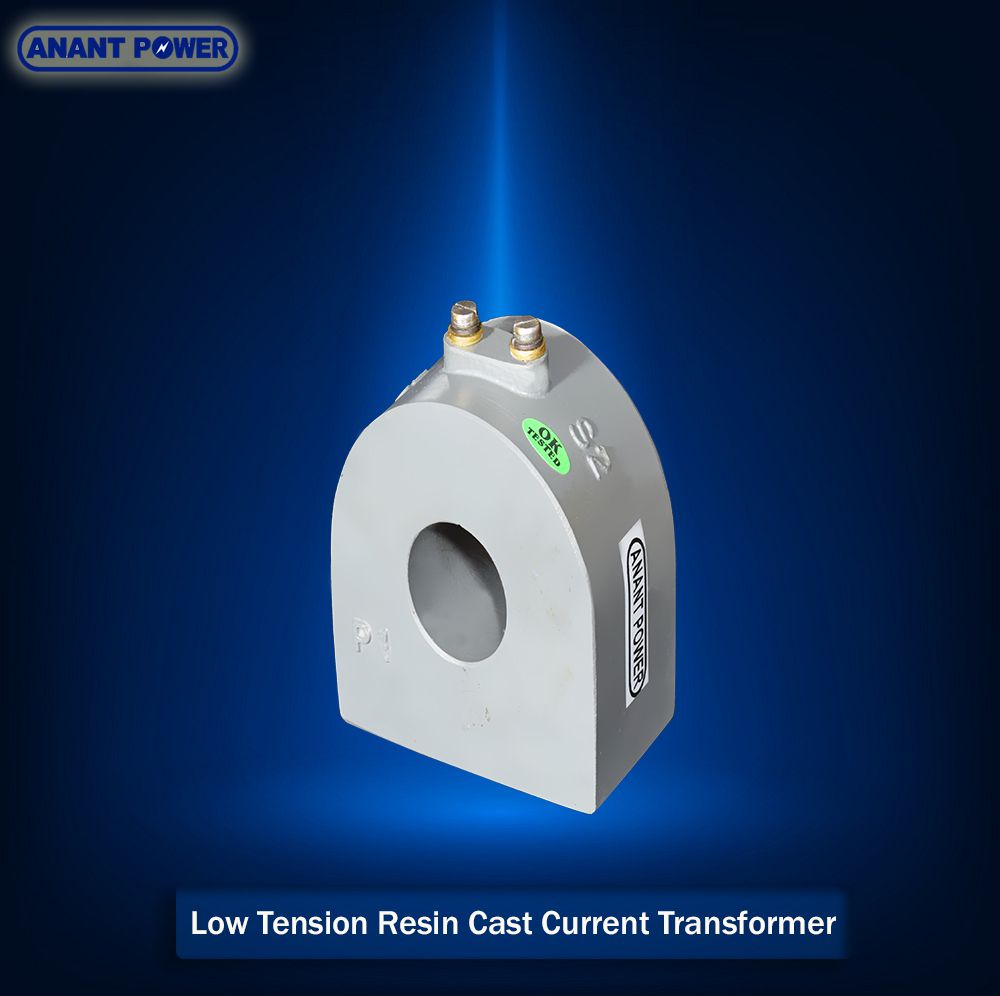

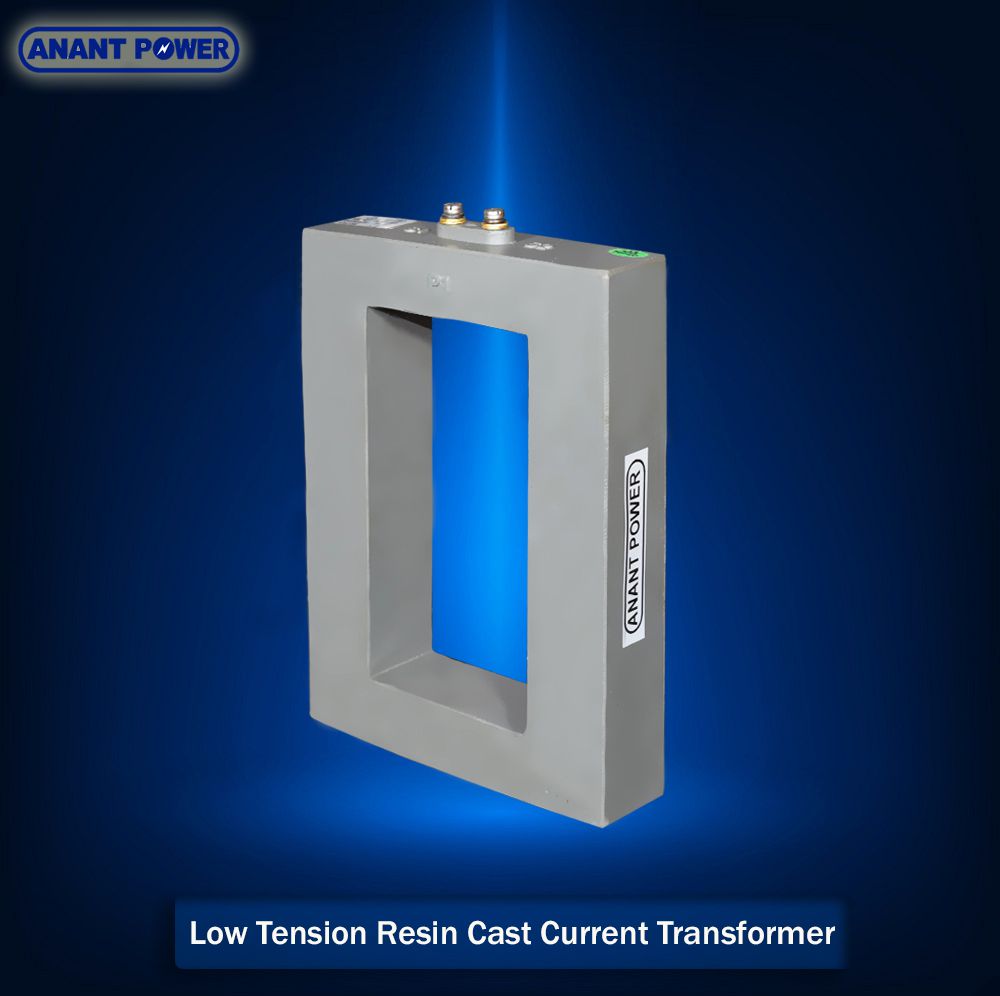

LT Current Transformer

We are offering quality Cast Resin & Tape Wound L.T. Cureent Transformers of multi range that is manufactured using quality components. These are widely used in various industries for measuring, protection & for special protections purpose.

ParametersParticulars
System Voltage0.66/3 kV
IpUp to 8000 A
Is1 A or 5 A
IthUp to 50 kA
Basic Insulation LevelUp to 3 kV
Insulation ClassClass E and higher
Accuracy ClassMetering Classes 1.0, 0.5, 0.2, 0.2S, 0.5S Protection Classes 5P Special Protection PS.
DimensionsAs per Customer's requirements
StandardIS:2705/1992, IEC 61869
Frequency50 / 60 Hz
