IEC 61439 Certified Panels - ADVANCE Design

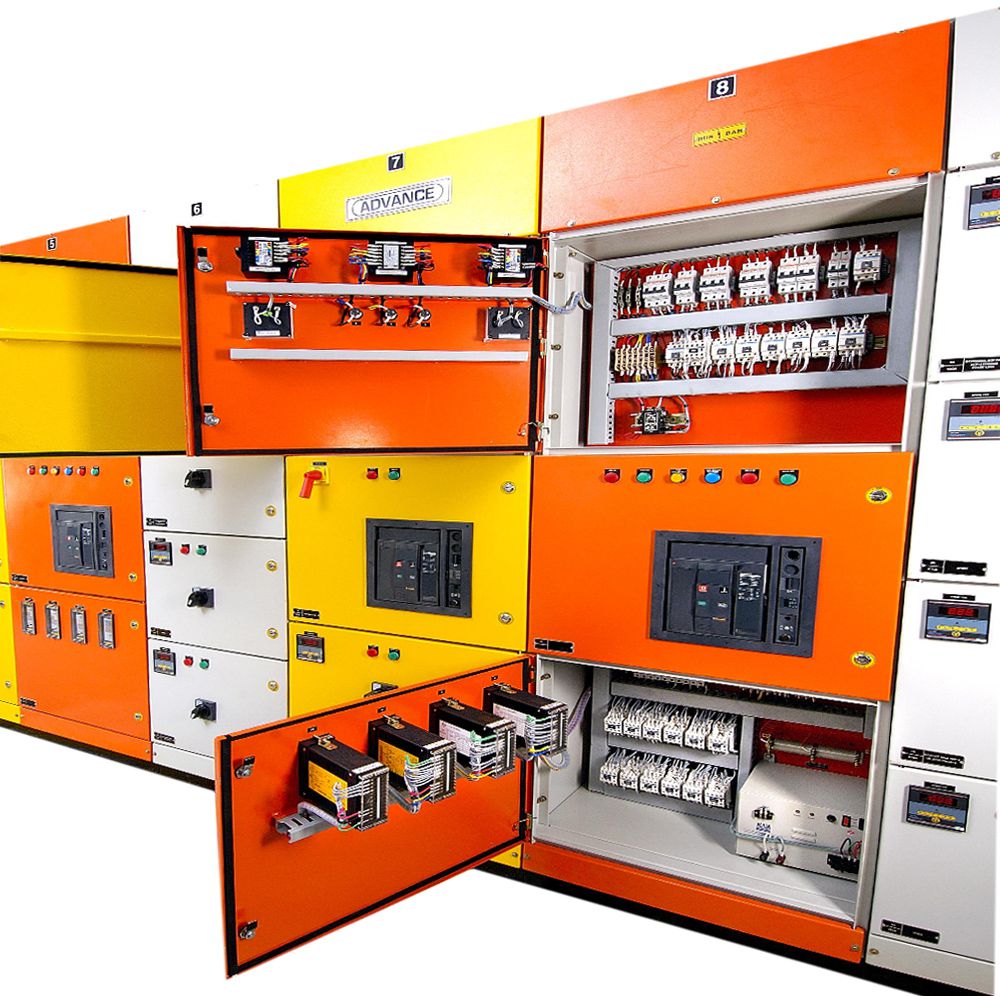

Advance make  Low - voltage Power Control Centers , Power Distribution Boards ( MLTP , PDB) covers a wide range of switchboards suited for the demanding needs of various Industries , utilities , Power Plants, Data Centers Buildings , Residential, Commercial applications & Townships. Established in 1979, We are one of the Largest manufacturers of Panels in India.

ADVANCE Panels are in-house Designed and developed in accordance to IEC 61439 Part 1 & 2 with ratings type tested up to 6300A, 100kA. Panels are tested for Seismic & Resonance search test as per IEEE 693: 2018, ZPA 0.5g for Zone V application for highest rating.

1. Modular/Bolted Construction , Foldable Design , Both side Expandable Type
2. Fully compartmentalized  design which ensures safety , Internal IP2X protection
3. Standardized design and sizes of Panels, Modules , Busbar Chamber, and Cable Alley
4. Busbar Design available in Copper up to 10000 A & Aluminum 6300A
5. Reference Standards Type Tested Assembly IEC 61439 , PTTA IS 60439 & IS 8623
6. Rated current up to 6300A
7. Rated frequency 50/60 Hz
8. Rated voltage 690VAC/ 800VAC / 1000 V AC , Upto 600V DC
9. Rated short time withstand current: 25 KA, 35KA , 50 KA , 65 KA , 70 KA , 85 KA ,100KA
10. Rated impulse withstand Voltage: Up to 12 KV for main circuit
11. Rated insulation voltage 1000V
12. Control Voltage: 12V/24V/30V/110V/230V
13. Degree Of Protection IP-42/43/52/54/55/65*
14. Internal Segregation: Form Separation 2B/3B/4A/4B
15. Mechanical Impact IK 10
16. Pollution Degree 3
17. Doors , Covers & Frames are very well gasketed with Neoprene/PU-Foam type  gaskets
18. Control & Monitoring: Through Communication Protocol – TCP/IP Modbus / RS 485 Modbus / Ethernet Ready Panels
19. Neutral Rating Options: TPN 50% / FP 100% / TP2N 200% of Main Bus size.
20. Provision of Installation of Gas Flooding system.
21. Provision of Mounting Internal Arc Protection Relays
22. SCADA for Auto operations and EMS as per customer requirement.
23. Incoming & Outgoing feeders are available with options - fixed versions, plug-in & withdrawable,

Largest Panel Installed in India 102 Meter Long IP 65 for Feeder Pillars
