Advance make  Low - voltage Power cum Motor Control Centers (PMCC/ MCC) Panels are suited for the demanding needs of various Industries , utilities , Power Plants ,Commercial applications & HVAC industries.

ADVANCE Panels are in-house Designed and developed in accordance to IEC 61439 Part 1 & 2 / IS 60439 with Short Circuit withstand ratings up to 65kA. Panels are tested for Seismic & Resonance search test as per IEEE 693: 2018, ZPA 0.5g for Zone V application for highest rating.

  1. Modular Construction , Foldable Design , Both side Expandable Type

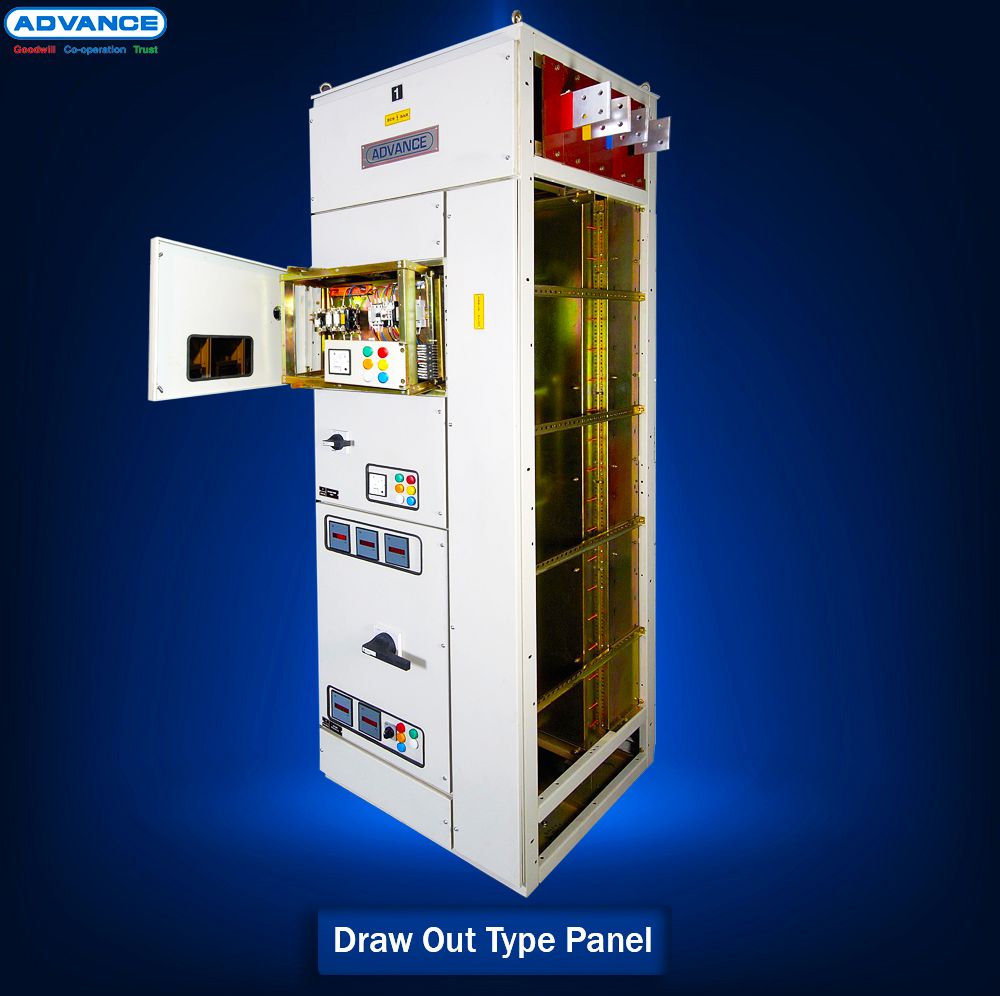

  2. Execution : Single Front / Double Front - Fixed / Drawout Type
  3. Fully compartmentalized  design which ensures safety.
  4. Standardized design and sizes of Panels, Modules , Busbar Chamber, and Cable Alley
  5. Similar Size Drawout Modules are Interchangeable with Safety shutters
  6. Drawout Modules have three distinctive positions - Test , Service & Isolation .
  7. In Drawout version all power & auxiliary Copper contacts are Self aligning type .
  8. Busbar Design available in Copper & Aluminum .
  9. Reference Standards Type Tested Assembly IEC 61439 , PTTA IS: 60439 & IS 8623
  10. Rated current for Main Bus / ACB Feeder : 6300 A
  11. Rated current for Drawout Feeder Maximum 630 A
  12. Rated frequency 50/60 Hz
  13. Rated voltage 690VAC
  14. Rated short time withstand current: 50KA, 65 KA at 415 V
  15. Rated impulse withstand Voltage : Up to 8KV.
  16. Control Voltage : 12V/24V/30V/110V/230V AC/DC
  17. Control Bus Provision 10 Nos.
  18. Degree Of Protection IP-42/43/52/54/55
  19. Internal Segregation : Form Separation 3B/4A/4B
  20. Mechanical Impact IK 10
  21. Pollution Degree 3
  22. Doors , Covers & Frames are very well gasketed with neoprene/PU-Foam type  gaskets
  23. IMCC Remote Operations : Through Ethernet/ Profibus DP / Profinet / Modbus etc.
  24. Neutral Rating Options : TPN 50% / FP 100% of Main Bus size.
  25. Provision of Installation of Gas Flooding system.
  26. Provision of Mounting Internal Protection Relays
  27. SCADA for Auto operations and EMS as per customer requirement.
