DG AMF CUM AUTO SYNCH PANEL

DG AMF CUM AUTO SYNCH PANEL

Advance Panels is one of the leader in manufacturing of most reliable DG Synchronization Panel in India. We have been manufacturing and supplying Manual Synchronization / Auto Synchronization on Relay logic basis / PLC Automation solution, High speed “Advance+ Synch Master controllers for Grid or Hybrid solutions” since 1995.

In last 25 years Advance Panels has commissioned various solutions from 415 V to 11000V auto synchronization & Grid Synchronization solutions capacity up to 30 MW. We manufacturer Power Panels for various fuel operating engines like High Speed Diesel, Natural Gas, Bio Gas, Steam Turbine, Gas Turbine, Solar powers. Our expierence is with world leading manufacturer like Cummins, MTU, Caterpillar, GE- Janbacher, MWM, Kirolskar, Kohler, Mitsubishi, Wukesha, Guascor, Duetz, Rolls Royce etc.

Grid Synchronization System



Equipment Details:

  1. Grid Incomer – Distribution Transformer - 2.5 MVA, 33kV/11 kV
  2. Captive Power – Diesel Generator - DG1, DG2 – Each 2 MVA, 11 kV
  3. Captive Power – Gas Generator GG1,GG2 –Each 1.6 MW, 11 kV
  4. Grid Synchronization: Thru Global Controller & PLC Automation
  5. System Features : Auto Load Sharing, Load Shedding, Load Management, SCADA System.
  6. Benefits : Best Fuel economy thru demand base switching, Less interruptions, Increased Product life cycle.

Our Expertise:

  1. AMF Operations
  2. Auto / Manual Synchronization System
  3. Multiple make DG Set auto Synchronization
  4. Momentary Grid Synchronization
  5. Hybrid Operations – Grid Power + Genset Power + Solar Power Auto Synchronization.
  6. Hot Standby / Redundant PLC System
  7. Controller Based Synchronization System

Typical Installation References:

  1. 9 Nos. 2000 kVA DG Sets “ Auto Synchronization System”
  2. 2 Nos. 2MW GG + 4 Nos. 1.2 MW DG + 2 Nos. Transformer
  3. 2 Nos. 2 MVA Transformer + 3 Nos. DG Sets + 1000kW Solar Power
  4. 3 Nos. 3 MW Gas Turbine + 1 Nos. 3 MW Gas Engine + 3 Nos. 2MVA DG Sets + 2 MVA Grid Power

Advance+ Synch Master Panels are in house designed & developed in accordance to IEC 61439 Part 1 & 2 with Type tested rating upto 6300A at 100 kA. DG Panels are tested for Seismic & Resonance search test as per IEEE 693:2018, ZPA 0.5 g for Zone V application for highest rating.

Unique Features of DG Panels:

  1. Modular / Bolted Constructions, Foldable Design, Both Side Expandable Type.
  2. Fully Compartmentalized design which ensure safety, Internal IP2X protection.
  3. Standardized design & size of panels, Modules,Bus chambers & Cable Alley.
  4. Reference Standards Type Tested Assembly IEC 61439/ PTTA IS: 60439 / IS 8623
  5. Rated Voltage – 415 V, 3.3 kV, 6.6 kV, 11 kV
  6. Rated Frequency – 50 Hz
  7. Connection provisions – Cables or Bus Ducts.
  8. Connection Entries – Top or Bottom
  9. Recommended PLC for Automation – Siemens / Allen Bradely/ Schneider
  10. Recommended DG Controller ( OEM) – PCC3.3, Power command, EMCP 4.2, Stuke etc.
  11. Global Controllers – Advance+Synch Master, Woodword, DIEF, Co-map etc.
  12. NGR & NIS – Lachman / Advance / Raytech etc.

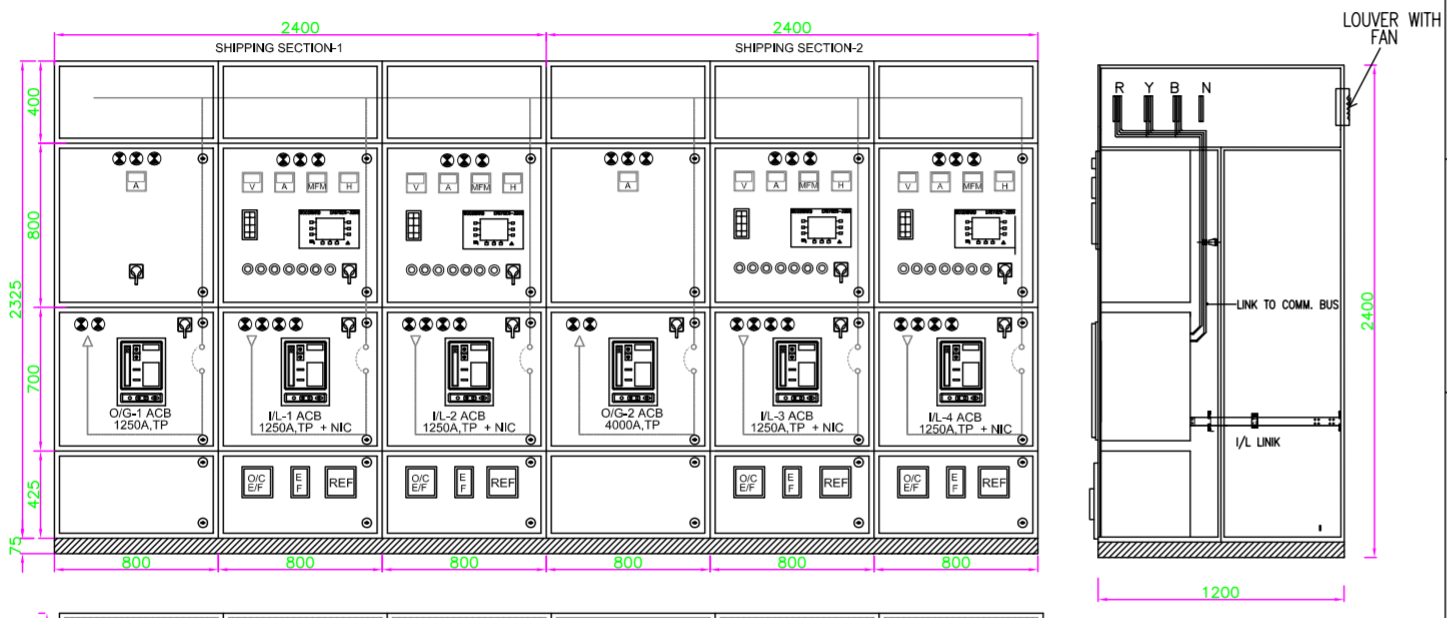

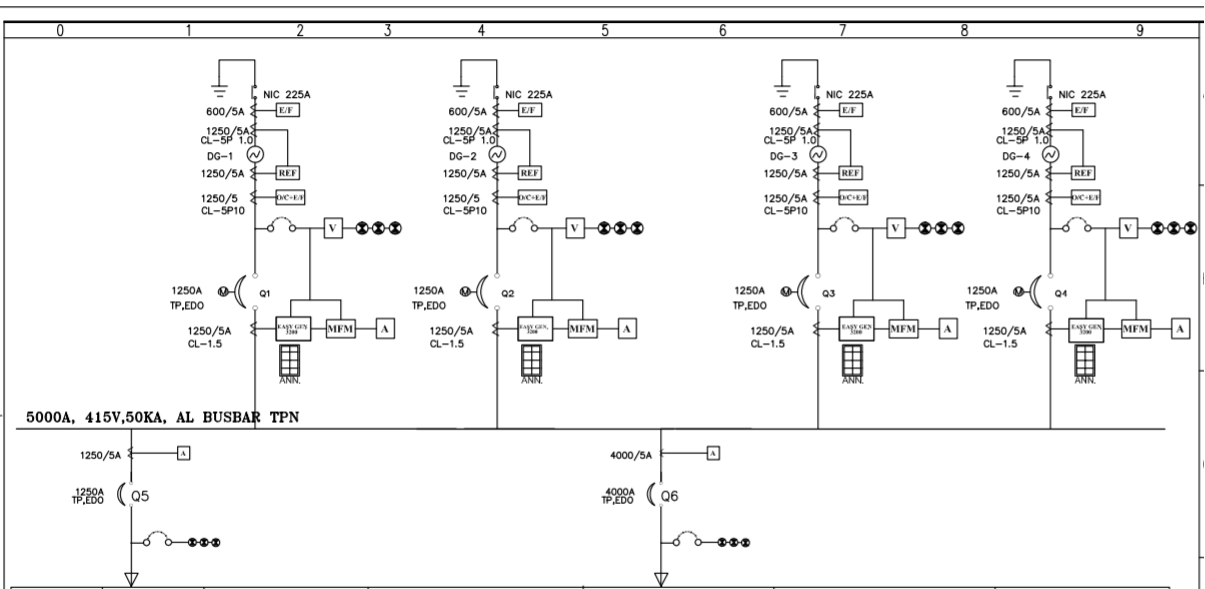

Reference Drawing - 4 Nos. 725 kVA DG “ Auto Synchronization Panel”
